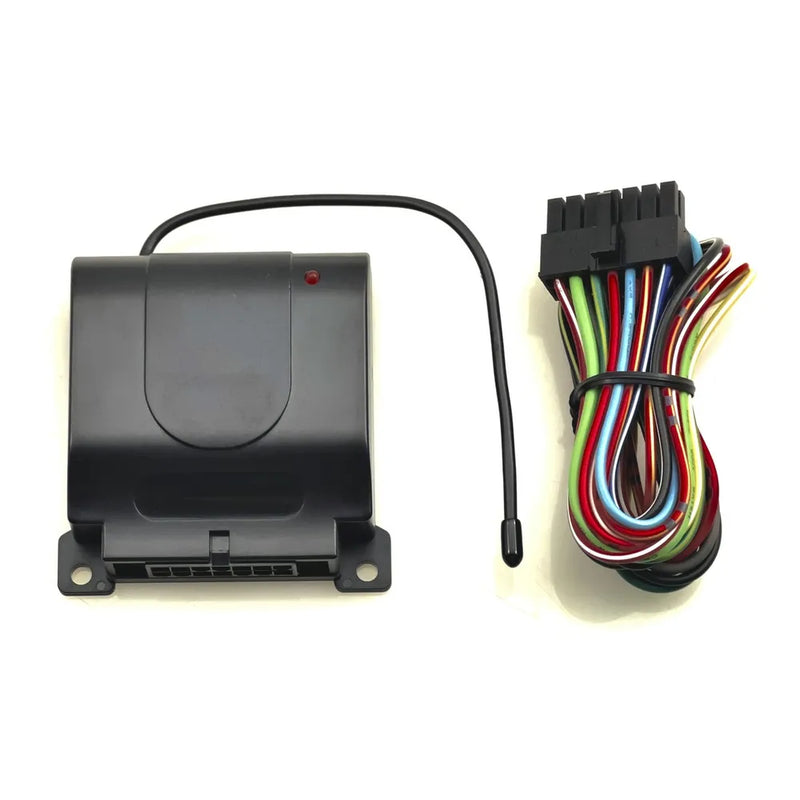

4-Channel Hardwired wireless transmitter to suit LR8859

4-Channel Hardwired wireless transmitter to suit LR8859.

Use external switches on LR8880 to let you wirelessly control the relay outputs on a paired LR8859 (sold separately).

Transmission range to LR8859: 100m (up to 400m with unobstructed line-of-sight)

LR8859 setup:

• Connect your LR8859 to 12v DC power and devices you wish to control per the LR8859 manual
• Verify it works (relay should make a clicking sound when you trigger it with a remote)

LR8880 setup:

• Connect the LR8880's wiring harness to external switches (NC/NO for each channel).
• Connect the LR8880 red/black harness wires to12v DC for powering the LR8880 unit.
• Plug in the wiring harness to power on the LR8880 unit
• Tap the pairing button on the LR8859 you want to control
• Tap the pairing button on the LR8880 and wait approx 10 seconds
• Close one of the switches wired to the LR8880 and it will wirelessly trigger the corresponding channel on a paired LR8859 unit.
