Digitech 50m 1080p Mini HDMI Cat5e/6 Extender

Digitech 50m 1080p Mini HDMI Cat5e/6 Extender

by Jaycar
SKU AC1726
$0
$125.91 - $125.91
$125.91
$125.91 - $125.91
$125.91

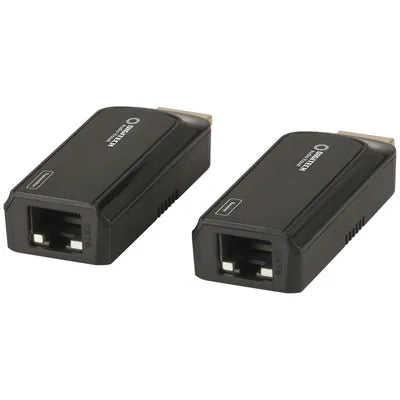

These mini extenders plug straight into the HDMI sockets on the source and receiver, allowing you to run your full 1080p HDMI signal up to 50m. Cat6 cable is recommended for longer distance, however will work with Cat5e cables over shorter lengths too. The receiver uses Power-Over-Cable (PoC) technology so it receives its power from the transmitter using the Cat5e/Cat6 ethernet cable. Includes USB Micro-B power cable and USB mains power adaptor.

Features:
  • 50m(Cat6), 40m (Cat5e) Transmission Range
  • Power Over Cat5e/Cat6 Cable (PoC)
  • HDCP and 3D Support
  • Adjustable Equaliser

Specifications:
  • Transmission Distance: Up to 50m (Cat6) and up to 40m (Cat5e)
  • HDMI: 1.3a
  • HDCP: 1.4
  • Resolution: Up to 1080p (1920 x 1080) at 50/60Hz
  • Video Bandwidth: 4.95Gbps
  • Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
  • Colour Depth: 8-bit
  • Power: 5VDC at 1A (Transmitter)
  • Dimensions: 62(L) x 25(W) x 15(H)mm (Each)
