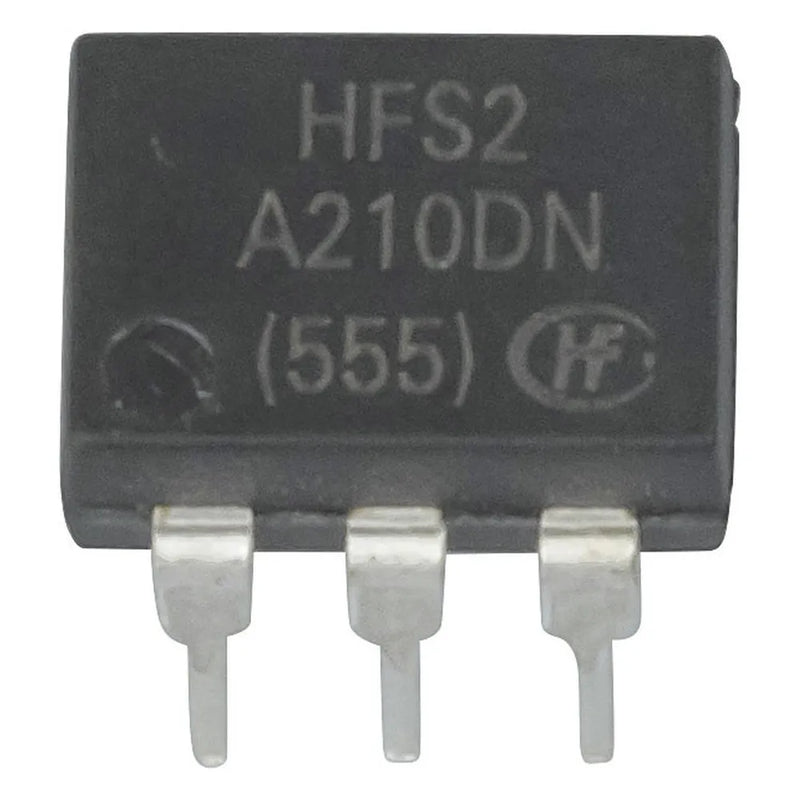

PCB Mount Solid State DIL Relay
by Jaycar
SKU SY4090
Original price
$16.13
-
Original price
$16.13
Original price
$16.13
$16.13
-
$16.13
Current price
$16.13
Able to be triggered from low currents, and a super small package. Low on resistance and very low quiescent current.
Features:
Must Release Current: 0.4mA
Must Operate Current: 5mA
Maximum Load Voltage: 60VDC
Maximum Load Current: 500mA
On-State Resistance: 0.1?
Off-State Leakage: 100nA
Package: 6 pin DIL
Features:
Must Release Current: 0.4mA
Must Operate Current: 5mA
Maximum Load Voltage: 60VDC
Maximum Load Current: 500mA
On-State Resistance: 0.1?
Off-State Leakage: 100nA
Package: 6 pin DIL
